Carbon rod, also known as carbon rod, is a good conductor. The following is a specific introduction:
Graphite Structure and Conductivity
Carbon rods are mainly composed of carbon elements and usually have a graphite crystal structure. In graphite crystals, carbon atoms are arranged in layers, and each layer of carbon atoms is tightly bonded through covalent bonds, forming a hexagonal planar network structure. And the layers interact with each other through weaker van der Waals forces. In this structure, each carbon atom forms a covalent bond with three adjacent carbon atoms, resulting in one electron being in a relatively free state. These large numbers of free electrons can move directionally under the action of an electric field, forming an electric current that gives the carbon rod good conductivity.
Conductivity manifestation in application fields
In the field of batteries, carbon rods are often used as positive electrode materials for dry batteries. In dry batteries, carbon rods use their conductivity to collect electrons generated during the chemical reaction process of the battery, allowing the electrons to form an electric current through an external circuit, thereby providing electrical energy to electrical appliances.
In the field of electrolysis, carbon rods are used as electrodes in electrolytic cells to introduce the current from the power source into the electrolyte, causing ions in the electrolyte to undergo redox reactions on the electrode surface. The good conductivity of carbon rods ensures the smooth transfer of electrons during the electrolysis process, ensuring the normal progress of the electrolysis reaction.

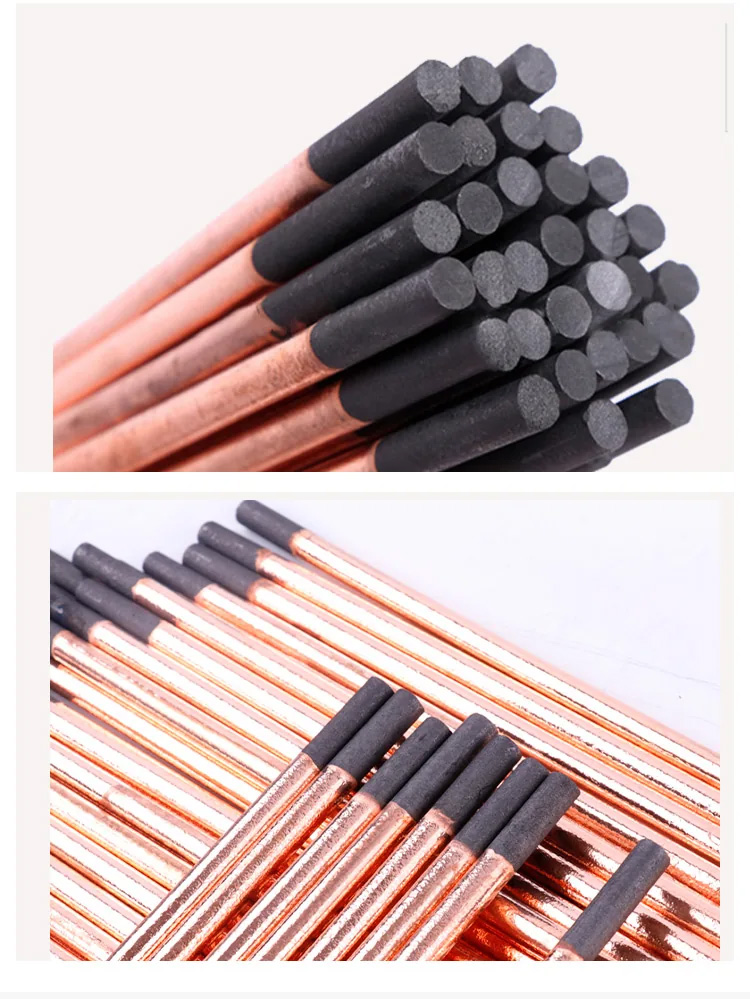

In the field of arc welding: Carbon rods are also used in arc welding. When an arc is generated between the carbon rod and the metal being welded, the conductivity of the carbon rod allows the current to pass smoothly, generating high temperatures and melting the metal to achieve welding.
Factors affecting conductivity
Purity: The content of impurities in carbon rods can affect their conductivity. The lower the impurity content, the higher the purity of the carbon rod, and the smoother the movement of free electrons inside, resulting in better conductivity.
Density: Generally speaking, carbon rods with higher density have a tighter and more orderly arrangement of carbon atoms inside, which is conducive to the conduction of free electrons and has relatively better conductivity.
Temperature: Within a certain range, as the temperature increases, the conductivity of the carbon rod will be enhanced. This is because as the temperature increases, the thermal motion of electrons intensifies, making it easier for free electrons to overcome resistance and move in a directional manner. But when the temperature is too high, it may cause changes in the structure of the carbon rod, which in turn affects its conductivity.
